What is Thermography?

Thermography is the study of observing temperature differences using a camera designed to get a visual image

  • Slide title

    Sample of thermal images

    Button
  • Samples of thermal images


    Button
  • Slide title


    Button
  • Slide title


    Button
  • Slide title


    Button

                                     The four conditions that can be observed with thermal camera

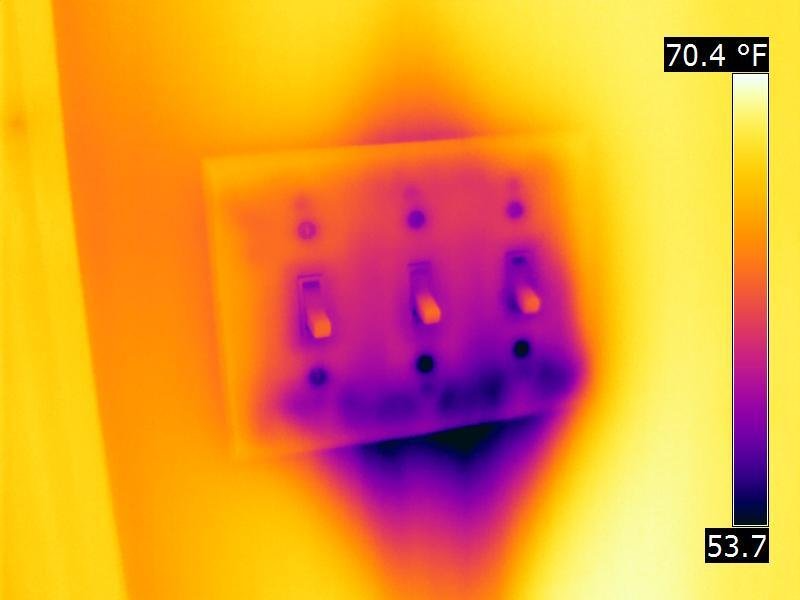

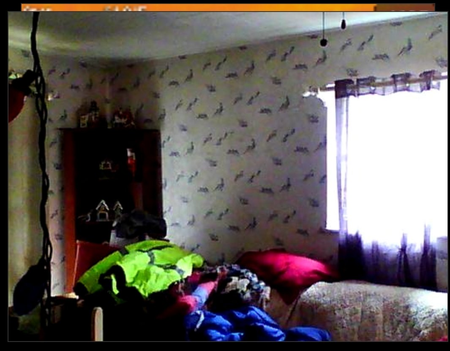

Airflow "infiltration" through leaking door seal

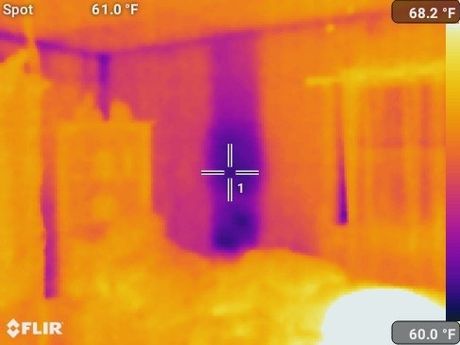

Cold spot showing missing insulation

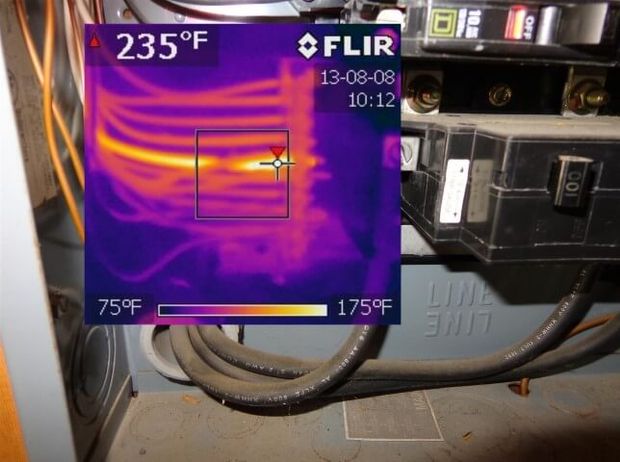

Hot spot showing single wire overheating

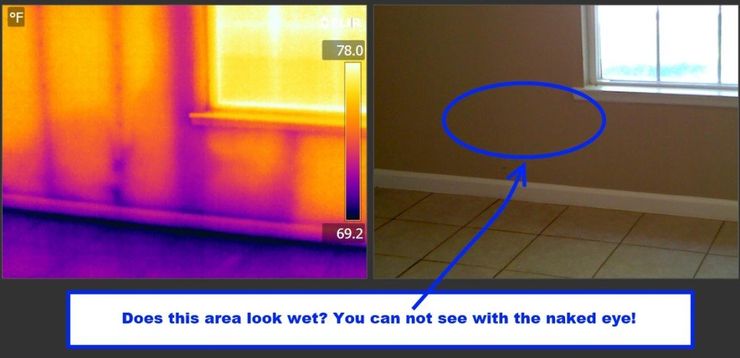

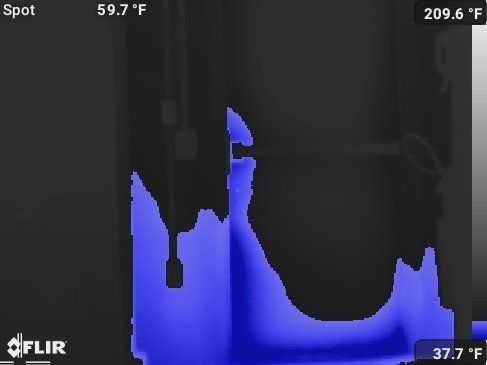

Moisture

This slideshow will help you understand the capability of a thermal camera.

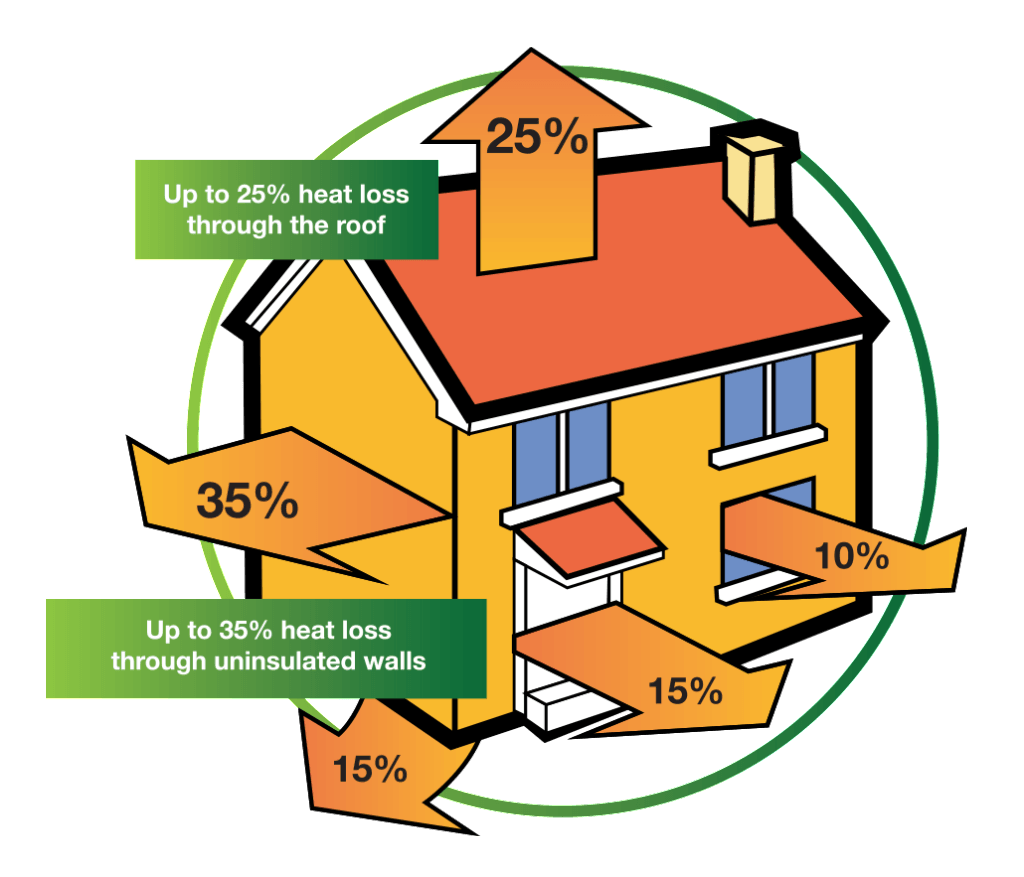

This picture shows typical energy loss by location.

With S&T we will make you an "Energy Saver".

For the average home owner we can help find potential moisture issues, see energy loss through windows, doors, walls and ceilings.

For commercial applications we help you see losses in air handling ducting, air infiltration and potential moisture issues.

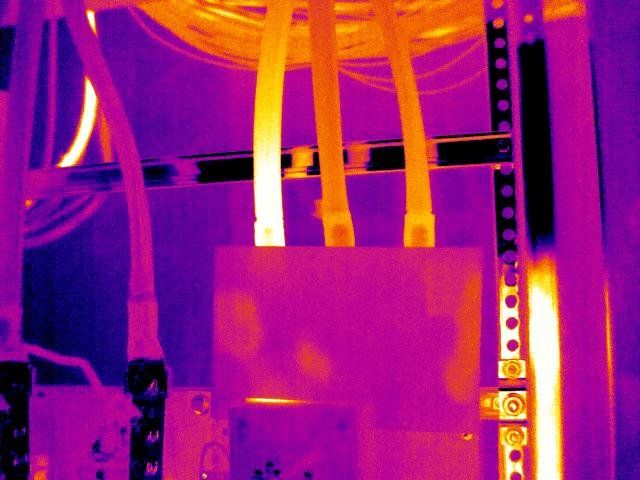

For industrial applications we help you see potential moisture issues, losses in heat exchanger deltas, motor and bearing operating temperatures as well as power supply operating temperature.

"With S&T we will help you find heat losses, heat gains, air infiltration, and moisture issues. We concentrate on qualitative concerns, we do not claim exact quantitative values nor can we find every anomaly."

Contact us

Contact Us

Every referral leading to another paying "Energy Saver" will receive 10% refund on original invoice or 20% off a future audit.
